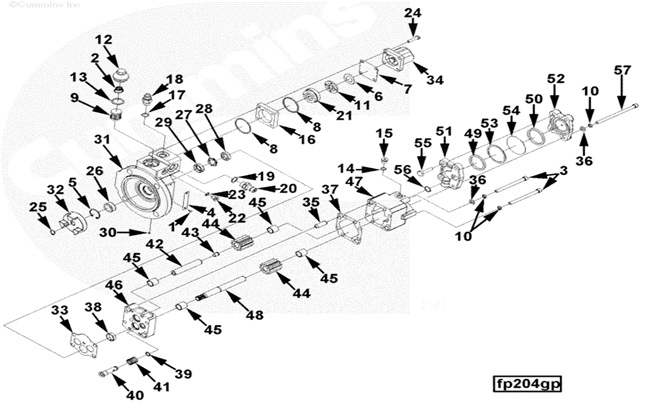

| 1-9 | +++++++ | 1 | Pump, Fuel | | D | | | | | | 1 | KS 2286 | 2 | * Screw, Drive | 0.000 | | | | | | | 2 | K70700 | 1 | * Spring, Compression | 0.000 | | | | | | | 3 | K100129 | 4 | * Screw, Socket Head Cap | 0.000 | | | | | | | 4 | K105375 | 1 | * Nameplate | 0.000 | | | | | | | 5 | K128807 | 1 | * Ring, Retaining | 0.000 | | | | | | | 6 | K129768 | 1 | * Spring, Valve | 0.010 | | | | | | | 7 | K129839 | 1 | * Shield, Shutoff Valve | 0.020 | | | | | | | 8 | K129888 | 2 | * Seal, Rectangular Ring | 0.010 | | | | | | | 9 | K146483 | 1 | * Screen, Filter | 0.000 | | | | | | | 10 | K153346 | 2 | Screw, Socket Head Cap | 0.000 | | | | | | | 11 | K196057 | 1 | Disc, Valve | 0.010 | | | | | | | 12 | K3014575 | 1 | * Cap, Fuel Pump Filter | 0.000 | | | | | | | 13 | K3021123 | 1 | * Seal, O Ring | 0.000 | | | | | | | 14-15 | K3033742 | 2 | * Plug, Threaded | 0.000 | | | | | | | 14 | K3034412 | 1 | ** Seal, O Ring | 0.000 | | | | | | | 15 | +++++++ | 1 | ** Plug, Threaded | | D | | | | | | 16 | +++++++ | 1 | * Housing, Actuator | | D | | | | | | 17-18 | +++++++ | 1 | * Union, Male | | D | | | | | | 17 | +++++++ | 1 | ** Seal, O Ring | | D | | | | | | 18 | +++++++ | 1 | ** Union, Male | | D | | | | | | 19-20 | +++++++ | 1 | * Nipple, Coupling | | D | | | | | | 19 | +++++++ | 1 | ** Seal, O Ring | | D | | | | | | 20 | +++++++ | 1 | ** Nipple, Coupling | | D | | | | | | 21 | +++++++ | 1 | * Disc, Actuator | | D | | | | | | 22-24 | +++++++ | 4 | * Plug, Threaded | | D | | | | | | 22 | +++++++ | 1 | ** Plug, Threaded | | D | | | | | | 24 | +++++++ | 1 | ** Seal, O Ring | | D | | | | | | 24 | +++++++ | 4 | * Screw, Captive Washer Cap | | D | | | | | | 25 | +++++++ | 1 | * Ring, Retaining | | D | | | | | | 26 | +++++++ | 1 | * Spacer, Seal | | D | | | | | | 27-29 | +++++++ | 1 | * Support, Fuel Pump | | D | | | | | | +++++++ | 1 | ** Spacer, Seal | | D | | | | | | 27 | +++++++ | 1 | ** Spacer, Seal | | D | | | | | | 28 | +++++++ | 1 | ** Seal, Oil | | D | | | | | | 29 | +++++++ | 1 | ** Seal, Oil | | D | | | | | | 30-31 | +++++++ | 1 | * Support, Fuel Pump | | D | | | | | | 30 | K3073887 | 1 | *** Plug,Ball | 0.000 | | | | | | | 31 | K3090997 | 1 | *** Support, Fuel Pump | 0.000 | | | | | | | 32 | +++++++ | 1 | * Hub, Jaw Coupling | | D | | | | | | 33 | K3096077 | 1 | * Gasket, Fuel Pump | 0.000 | | | | | | | 34 | K3408421 | 1 | * Solenoid | 0.000 | | | | | | | 35-44 | +++++++ | 1 | * Pump, Gear Fuel | | D | | | | | | 35 | K64816 A | 2 | ** Dowel, Pin | 0.000 | | | | | | | 36 | K70704 | 2 | ** Washer, Plain | 0.000 | | | | | | | 3 | K100129 | 2 | ** Screw, Socket Head Cap | 0.000 | | | | | | | 37 | K110855 | 1 | ** Gasket, Fuel Pump | 0.000 | | | | | | | 10 | K181466 | 2 | ** Washer, Lock | 0.000 | | | | | | | 38 | K3033719 | 1 | ** Dowel, Ring | 0.000 | | | | | | | 39 | K3085615 | 1 | ** Ring, Retaining | 0.000 | | | | | | | 40 | K4010296 | 1 | ** Plunger, PRS Regulator | 0.000 | | | | | | | 41 | K4010297 | 1 | ** Spring, Compression | 0.000 | | | | | | | 42-44 | K4903125 | 1 | ** Gear and Shaft | 0.000 | | | | | | | 42 | +++++++ | 1 | *** Shaft, Idler | | D | | | | | | 43 | +++++++ | 1 | *** Valve, Check | | D | | | | | | 44 | +++++++ | 1 | *** Gear, Fuel Pumping | | D | | | | | | 45-46 | +++++++ | 1 | ** Cover, Fuel Pump Gear | | D | | | | | | 45 | +++++++ | 2 | *** Bushing | | D | | | | | | 46 | +++++++ | 1 | *** Cover, Fuel Pump Gear | | D | | | | | | +++++++ | 1 | ** Housing, Fuel Pump Gear | | D | | | | | | 47-47 | +++++++ | 1 | ** Gear & Shaft | | D | | | | | | 47 | +++++++ | 1 | *** Housing, Fuel Pump Gear | | D | | | | | | 48-44 | +++++++ | 1 | ** Gear | | D | | | | | | 48 | +++++++ | 1 | *** Shaft, Fuel Pump Drive | | D | | | | | | 44 | +++++++ | 1 | *** Gear, Fuel Pumping | | D | | | | | | 49-55 | +++++++ | 1 | Damper, Fuel Pump | | D | | | | | | 49 | +++++++ | 1 | * Seal, Rectangular Ring | | D | | | | | | 50 | +++++++ | 1 | * Seal, Rectangular Ring | | D | | | | | | 51 | +++++++ | 1 | * Body, Fuel Pump Damper | | D | | | | | | 52 | +++++++ | 1 | * Cover, Fuel Pump Damper | | D | | | | | | 53 | +++++++ | 1 | * Washer, Plain | | D | | | | | | 54 | K202897 | 1 | * Diaphragm, Ful Pump Damp | 0.000 | | | | | | | 55 | K3017051 | 2 | * Screw, Captive Washer Cap | 0.000 | | | | | | | 36 | K70704 | 2 | Washer, Plain | 0.000 | | | | | | | 56 | K151900 | 1 | Seal, Rectangular Ring | 0.000 | | | | | | | 57 | K153346 | 2 | Screw, Socket Head Cap | 0.000 | | | | | | | 10 | K181466 | 1 | Washer, Lock | 0.000 | | | | | | | +++++++ | 1 | Support, Fuel Pump | | D | | | | | | +++++++ | 1 | * Ring, Retaining | | D | | | | | | K3037536 | 1 | * Plug, Threaded | 0.000 | | | | | | | K3037537 | 1 | ** Seal, O Ring | 0.010 | | | | | | | K3040813 | 1 | ** Plug, Threaded | 0.000 | | | | | | | K3074316 | 1 | * Spacer, Seal | 0.000 | | | | | | | +++++++ | 1 | * Spacer, Seal | | D | | | | | | K3090996 | 1 | * Support, Fuel Pump | 0.000 | | | | | | | K3096077 | 1 | * Gasket, Fuel Pump | 0.000 | | | | | | | K3803477 | 1 | * Kit, Oil Seal | 0.000 | | | | | | | K3071643 | 1 | ** Seal, Oil | 0.000 | | | | | | | +++++++ | 1 | ** Seal, Oil | | D | | | | | | +++++++ | 1 | Kit, Fuel Solenoid | | D | | | | | | +++++++ | 2 | * Seal, Rectangular Ring | | D | | | | | | +++++++ | 1 | * Solenoid | | D | | | | |
| |
|
